We are leading manufacturers and suppliers of high quality Ultra Slim System Windows in India.
By incorporating the best elements into our door system at numerous stages of design, we ensure the best results. It has been exclusively designed for comfortable interiors and visual aesthetics. It is a multi-functional range that can be used for diverse spaces with great technique and supreme care.
It is the product of a better tomorrow. 89mm profile for strength and stability and an inline design, make this system one of the slim window systems in the market. This is an ideal solution for residences, flats, and commercial buildings offering impressive and functional results with a great view.
Sleek mullion minimizes the impact of the window on view. It is one of the most energy-efficient systems in the industry. With the ever-demanding government regulations on protecting the environment, we have ensured that the materials used can be recycled with minimal waste in the future.
ALCOM aluminium provides a vast range of options of Power Coating, Anodizing, PVDF and Wooden finish coating for Windows to create best aesthetic combination with surrounding interior/exterior design.
| 20MM ULTRASLIM | ALLOY AND TEMPER | 6063 T6 ALUMINIUM |
|---|---|---|
| FRAME DEPTH 2 TRACK | 151 X 50MM | |
| SIDELINE | 30MM | |
| MAX. SHUTTER HIGHT | 20 FEET | |
| TRACK CONCEALED | BOTH SIDE CONCEALED POSSIBLE | |
| CORNER OPENING | POSSIBLE | |
| GLASS OPTIONS | 12MM SINGLE / 24MM DGU /36 DGU WITH LAMINATED | |

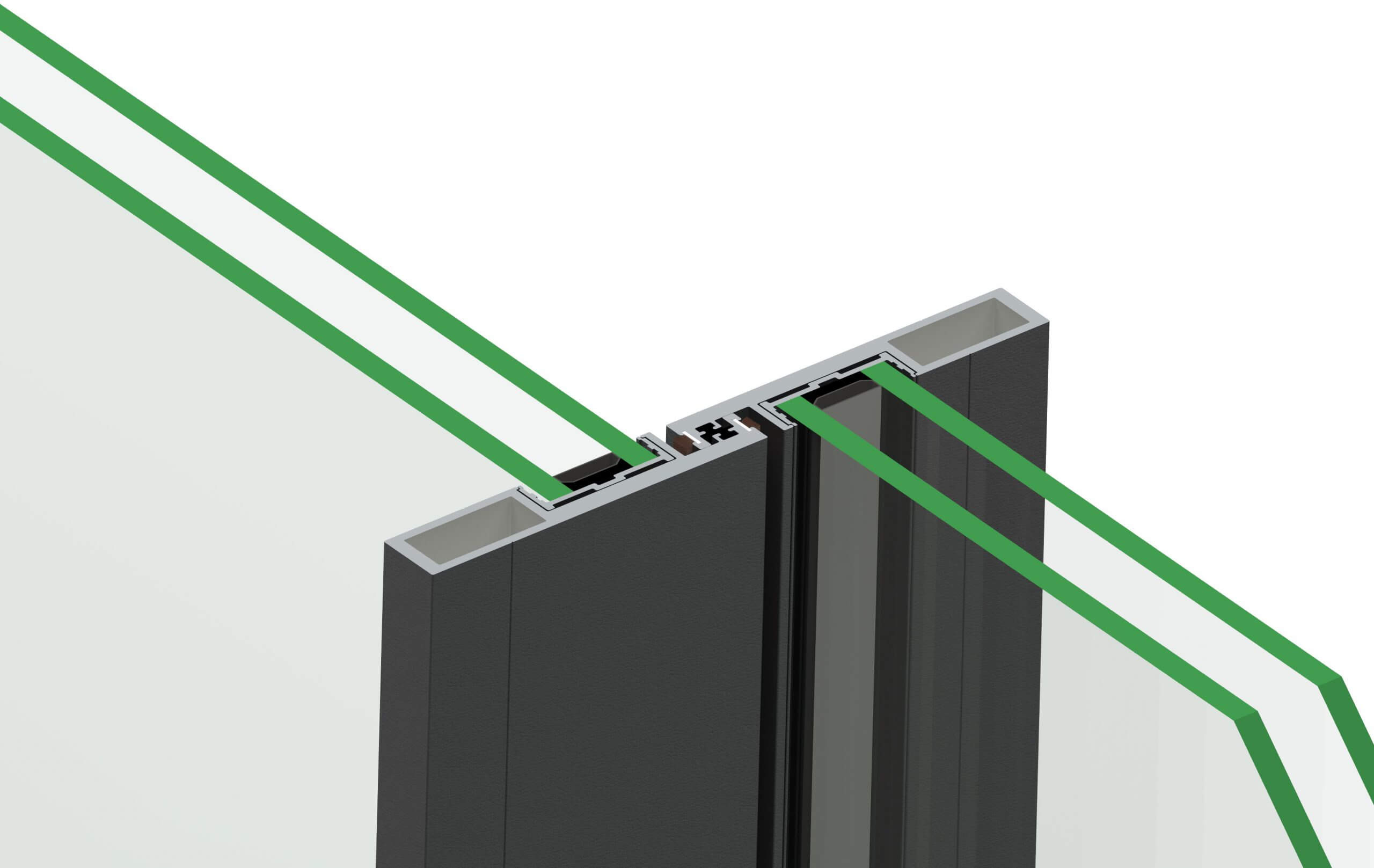

| INTERLOCK VISIBLE | 20MM | |
| ROLLER | SS TRACK + SS BEARING | |
| APPLICATION | RESIDENTIAL, APPARTMENT AND VILLA | |

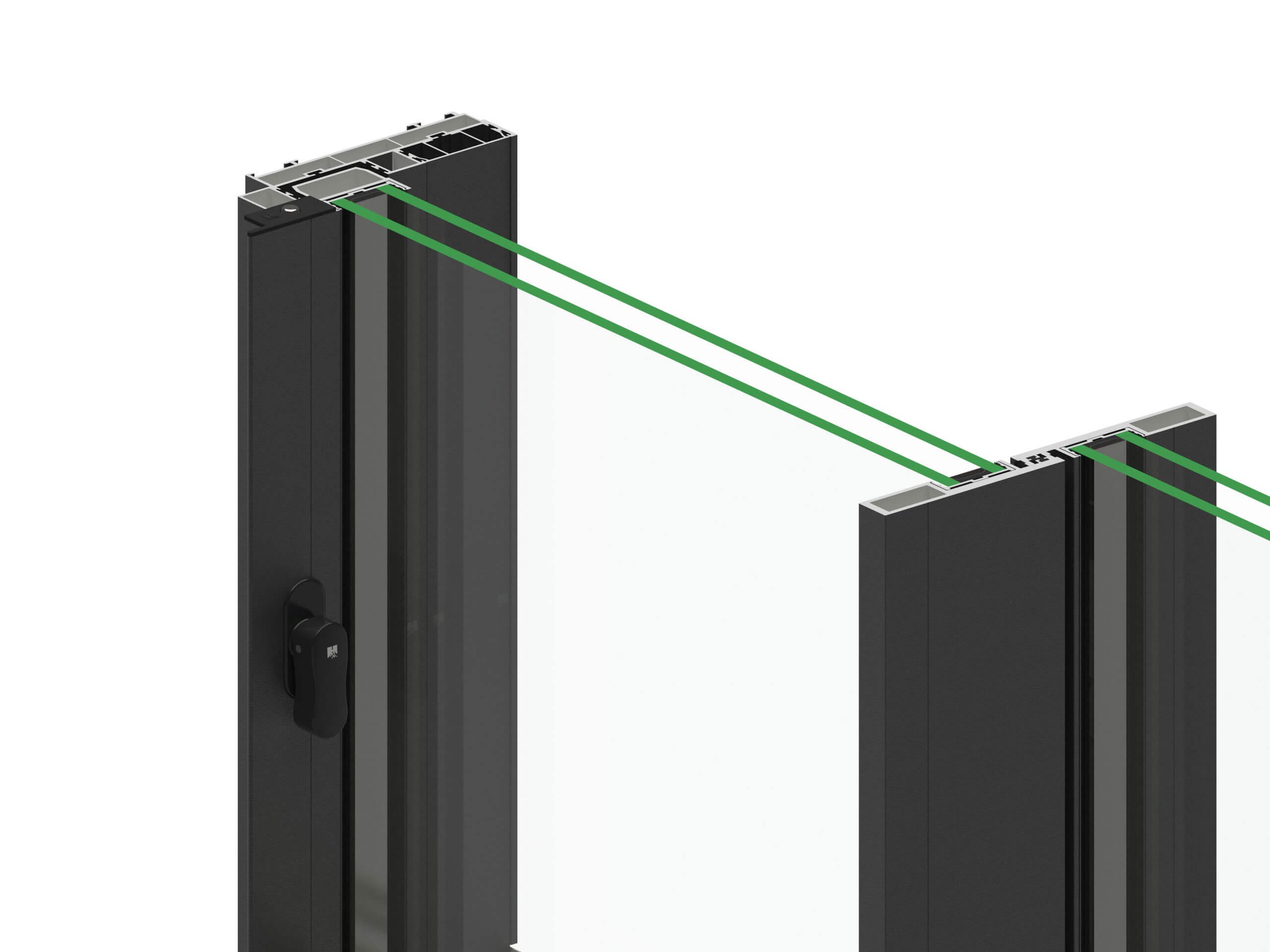

| LOCKING | MULTIPOINT LOCK WITH NOB HANDLE |
- Sleek sightline – 20 mm
- Versatile and durable
- Option to add mesh track

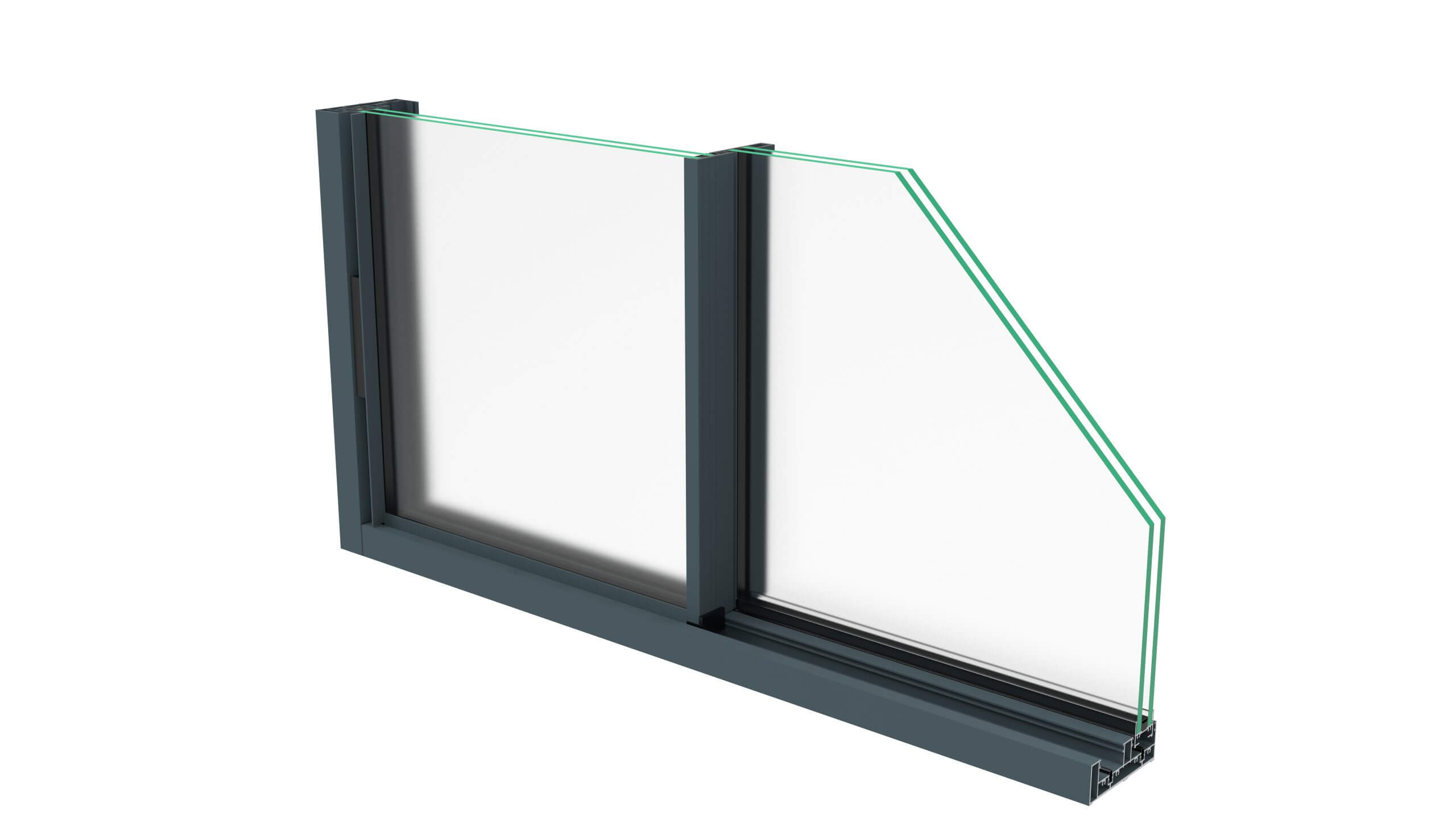

- L Shape window with flying mullion
- Highly durable and can withstand extreme temperatures
- Built to withstand wind load pressure of up to 3.5 kpa
- Eco-friendly
- Reinforcement by default
- Almost completely maintenance free
- Customization in terms of size, glass and colour
- Both side (In – out) Concealed option
- Maintenance free & Structural Bonding
- Maximum Safety & Security
- MULTIPOINT LOCK WITH NOB HANDLE
